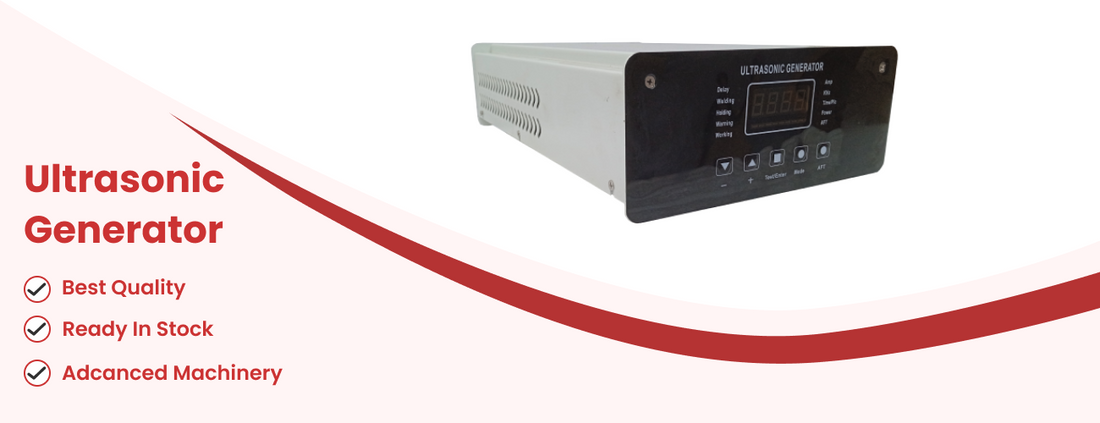

An ultrasonic generator is a vital component of any ultrasonic welding system. It converts standard electrical input into high-frequency electrical energy, which is used to create ultrasonic vibrations for welding, sealing, cutting, or bonding materials.
Without a stable and precise ultrasonic generator, consistent welding performance is not possible. It ensures controlled frequency, power output, and system efficiency in industrial applications.
🔬 How an Ultrasonic Generator Works
The generator transforms standard AC power into high-frequency electrical signals, typically ranging from 20 kHz to 40 kHz. These signals are transmitted to the ultrasonic converter, which converts electrical energy into mechanical vibrations.
These vibrations travel through a booster and horn to the material interface, where localized heat is generated for bonding.
The generator controls:
-
Frequency stability
-
Output power level
-
Amplitude regulation
-
Automatic system tuning
-
Safety protection mechanisms
This precise control ensures strong, repeatable, and high-quality welds.
✅ Key Features
⚙️ Digital Frequency Tracking
Maintains stable ultrasonic output for consistent welding results.
🔄 Automatic Tuning System
Optimizes performance by matching frequency with the converter and horn.
🛡️ Overload & Short Circuit Protection
Protects equipment from electrical faults and overheating.
📊 Adjustable Power Control
Allows customization based on material type and thickness.
🔌 Compact & Industrial-Grade Design
Built for continuous operation in demanding manufacturing environments.
🏭 Applications
Ultrasonic generators are widely used in:
-
Non-woven fabric welding
-
Medical product manufacturing
-
Plastic component assembly
-
Automotive interior parts
-
Packaging and sealing systems
-
Ultrasonic sewing machines
📈 Conclusion
An ultrasonic generator plays a critical role in ensuring efficient and reliable ultrasonic welding performance. With stable frequency control, adjustable power output, and advanced protection features, it supports high-speed industrial production with precision and consistency.
